Optical Axis

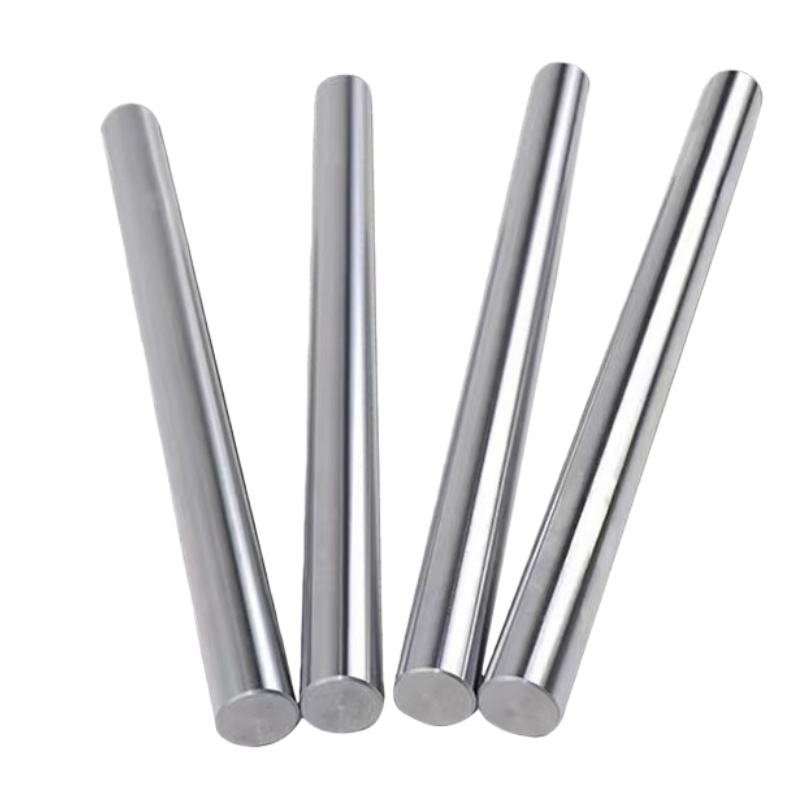

A cylindrical metal rod with high-precision grinding or polishing treatment on its surface, also known as a piston rod or linear guide shaft, is the core basic component in the linear transmission system of automation equipment. It is mainly used to cooperate with linear bearings, optical axis supports, cylinders and other accessories to achieve reciprocating linear motion and precise guidance of the components.

BUY ON AMAZON

Description

Specification

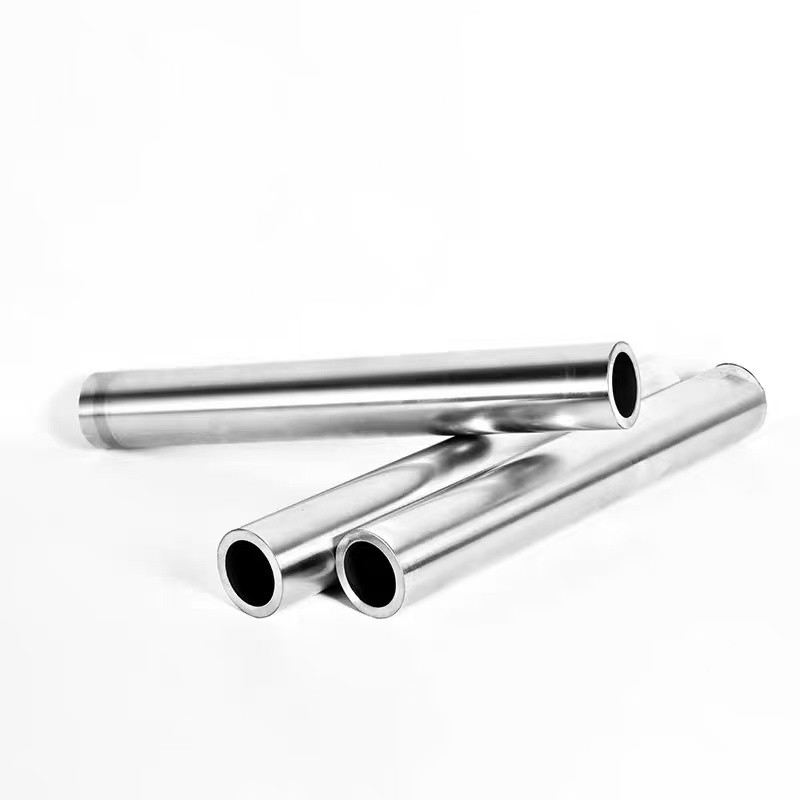

Tems	Linear shaft	Flexible shaft	Hollow shaft
Material	CK45, SUJ2	CK45	SUJ2
Heat treatment	Induction hardened	Not hardened	Induction hardened
Surface hardness	HRC58±2	HRC15±3	HRC60±2
Surface treated	Hard chrome plated	Hard chrome plated	Hard chrome plated
Precision	h7, g6, h6	h7, g6	h7, g6, h6
Roundness	Max3.0µm	Max3.0µm	Max3.0µm
Straightness	Max5.0µm	Max5.0µm	Max5.0µm
Chrome thickness	20-30µm	30µm	30µm
Roughness	Max1.5µm	Max1.5µm	Max1.5µm

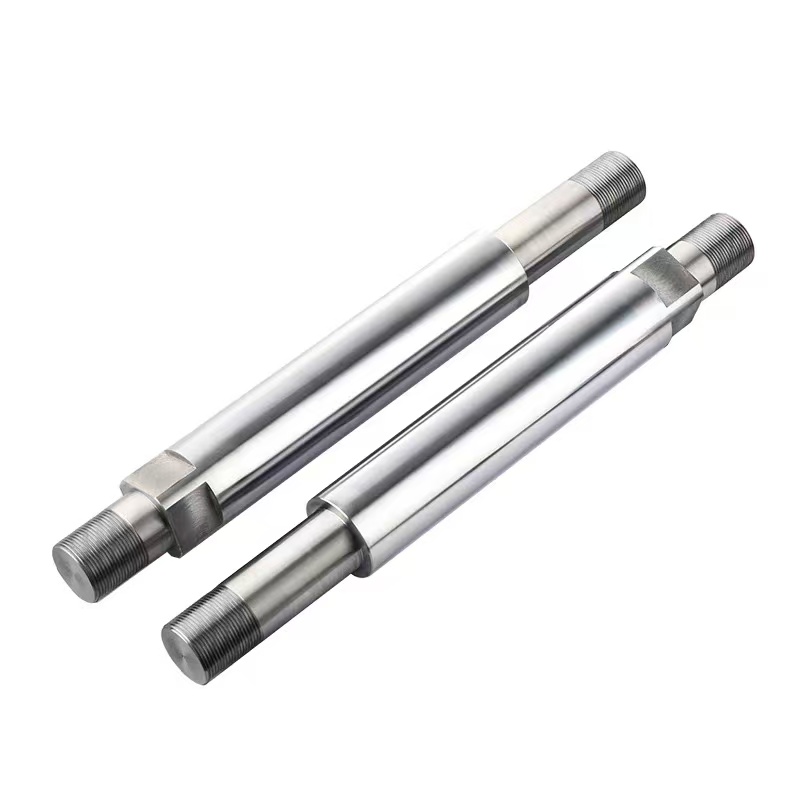

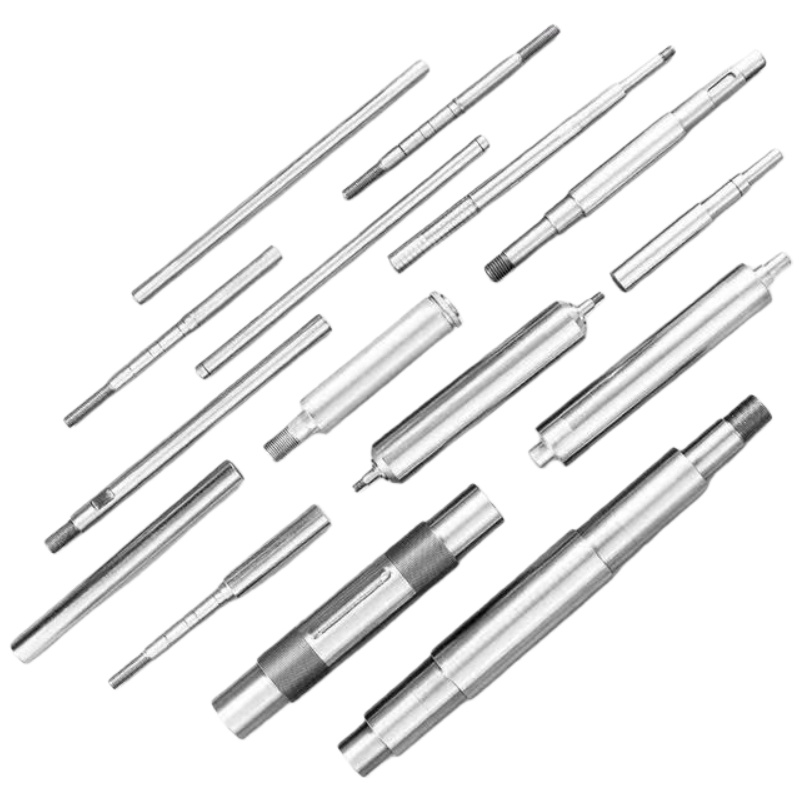

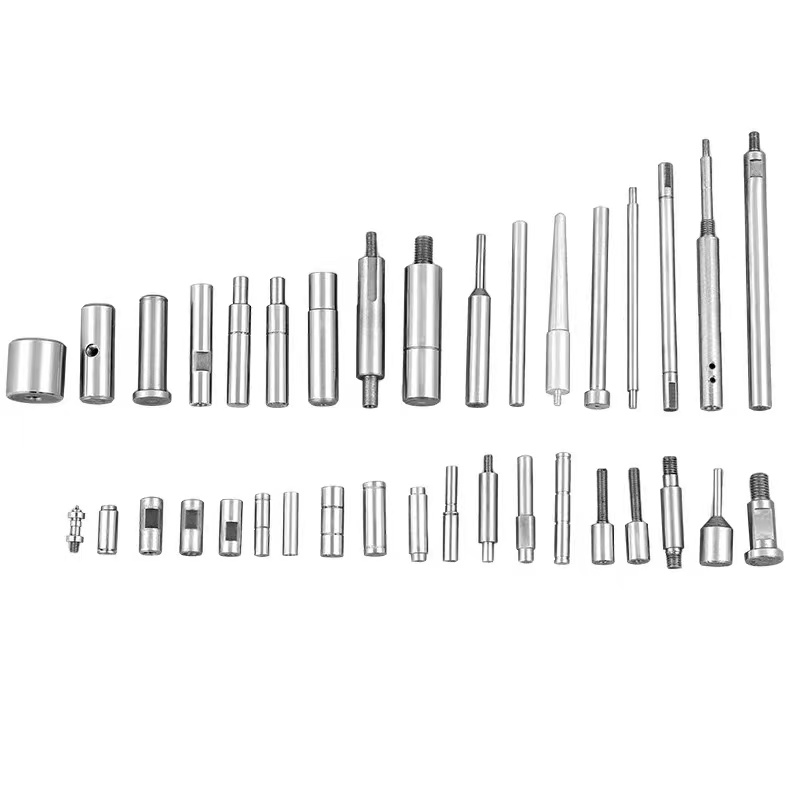

Process machinized	Threading, reduced shaft dia,coaxial holes drilled and tapped, flats-single or multiple, key way, snap ring grooves, radial holes drilled and tapped, chamfering

There are many different kinds of machining proces

Carbon Steel Material G6 Precision 12mm Induction Linear Shaft

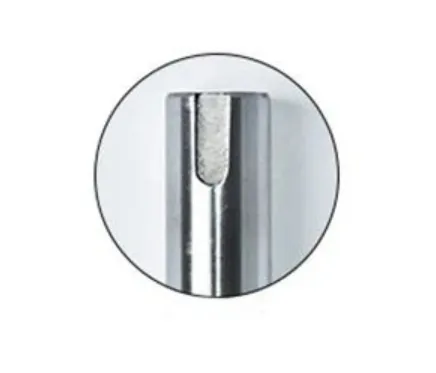

Processing machinized Flats---Single or Multiple

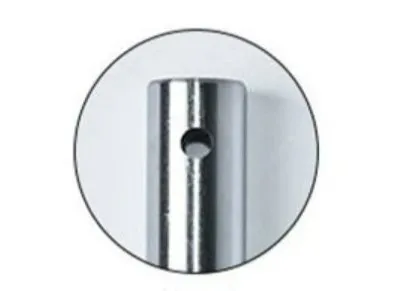

Processing machinized Radial holes drilled and tapped

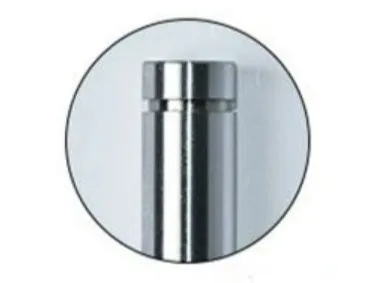

Processing machinized Snap ring grooves

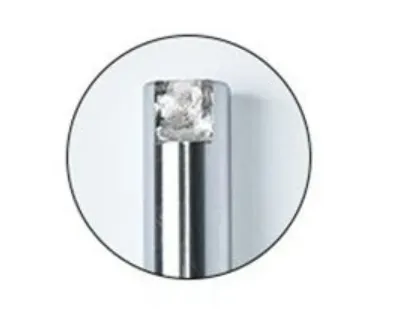

Processing machinized key way

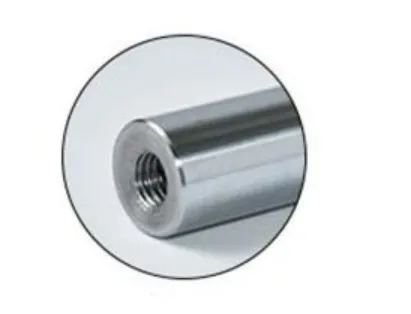

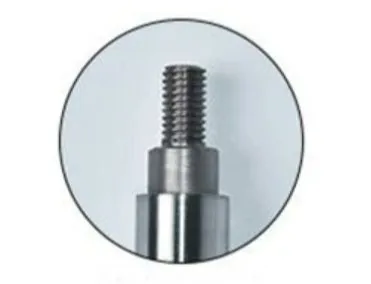

Processing machinized Coaxial holes drilled and tapped

Test the quality according to cusdifferent require

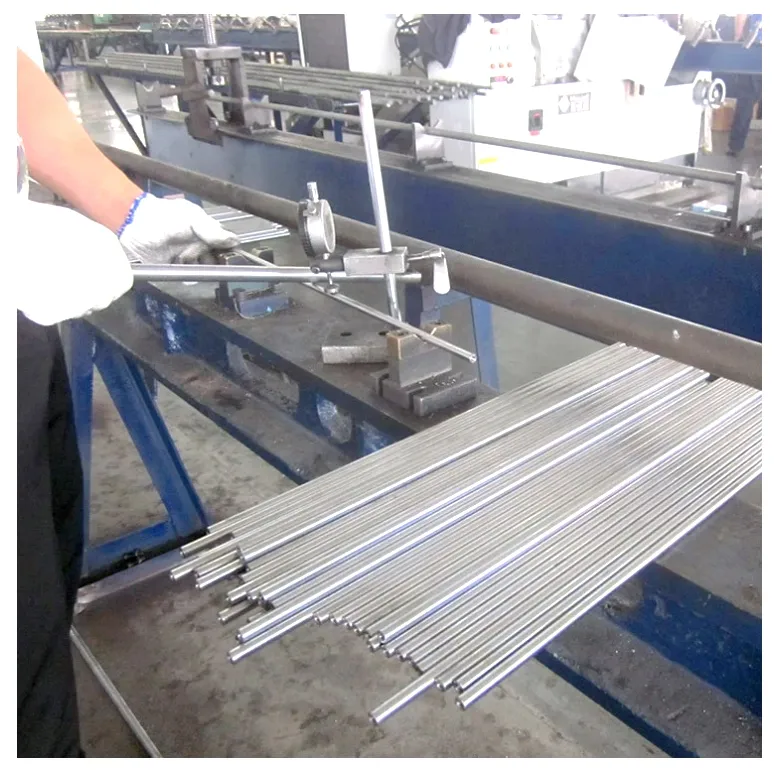

Please enter the titlStraight the linear shaft straightness:

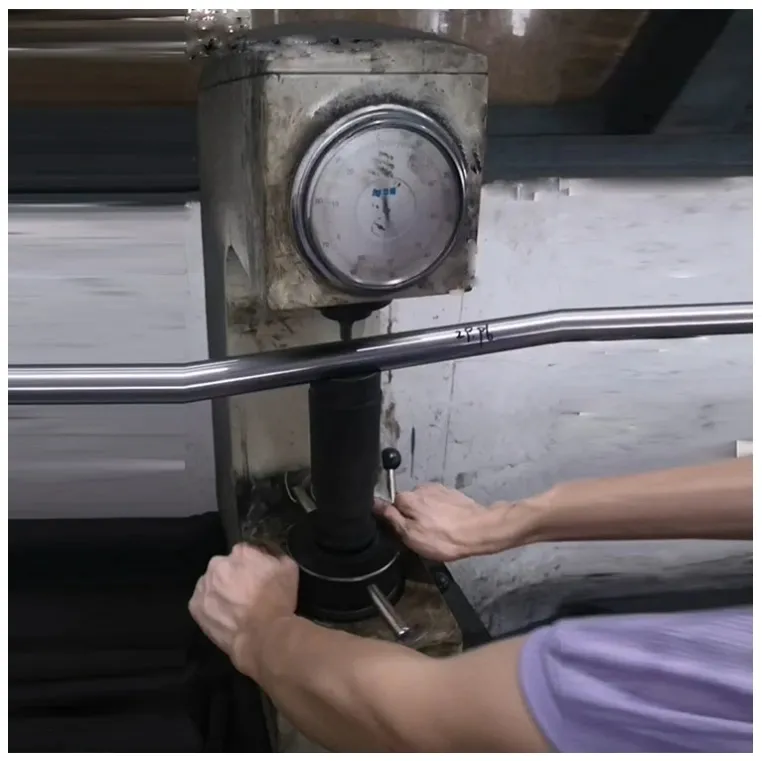

Test hardness:

We control the traighness 0.05mm of linear shaft 300mm

S45C material induction linear shaft, the hardness is HRC55-58
GCr15 (SUJ2) material induction linear shaft, the hardness is HRC58-63
If flexible shaft, the hardness is based on the shaft material itself

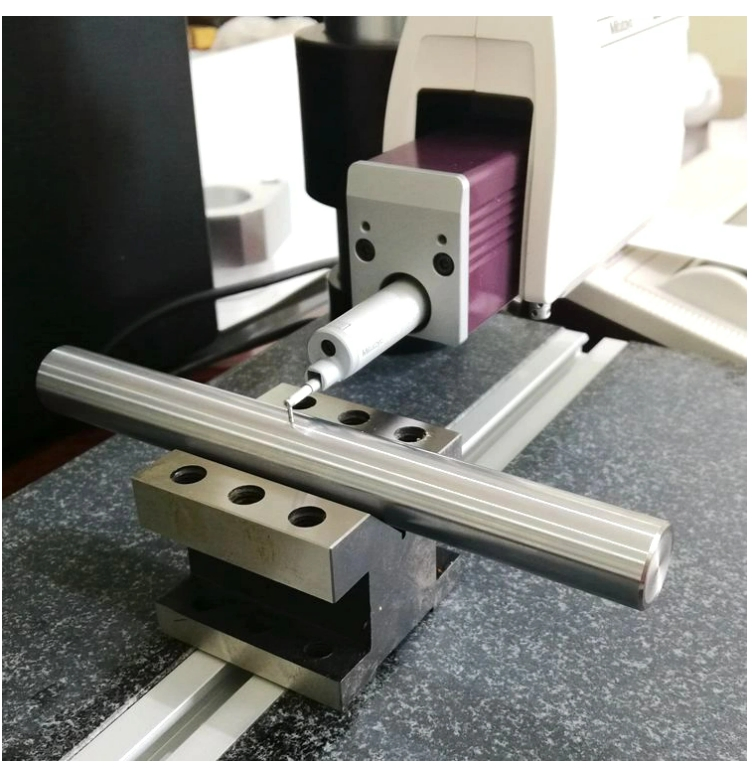

Test linear shaft surface roughness
the max roughness is Ra0.4um

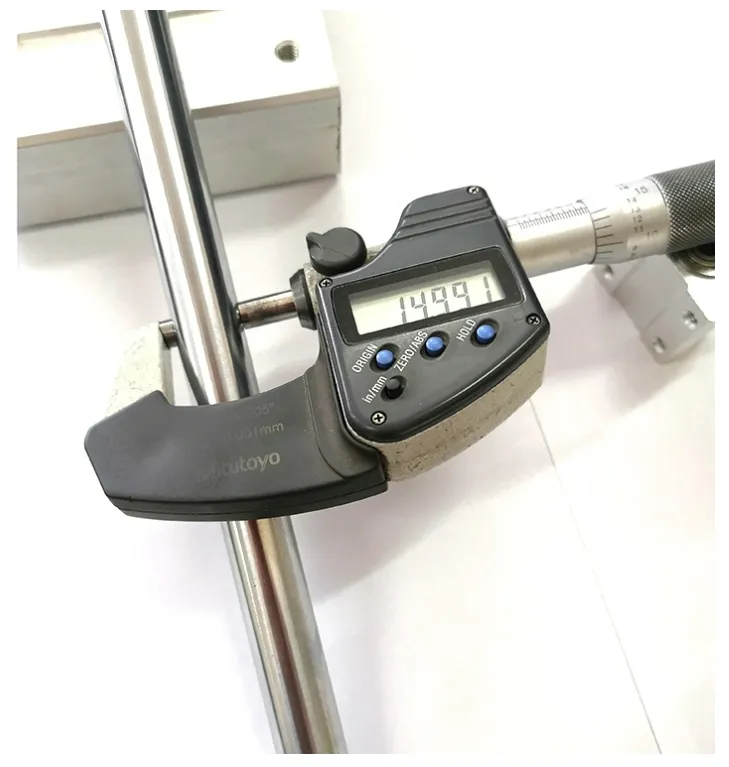

Test the linear shaft dia precision, as usually, h7 is the normal tolerance in our stock. But we can offer g6, h6 precision too.
If any special tolerance, we are able to customize them for you.

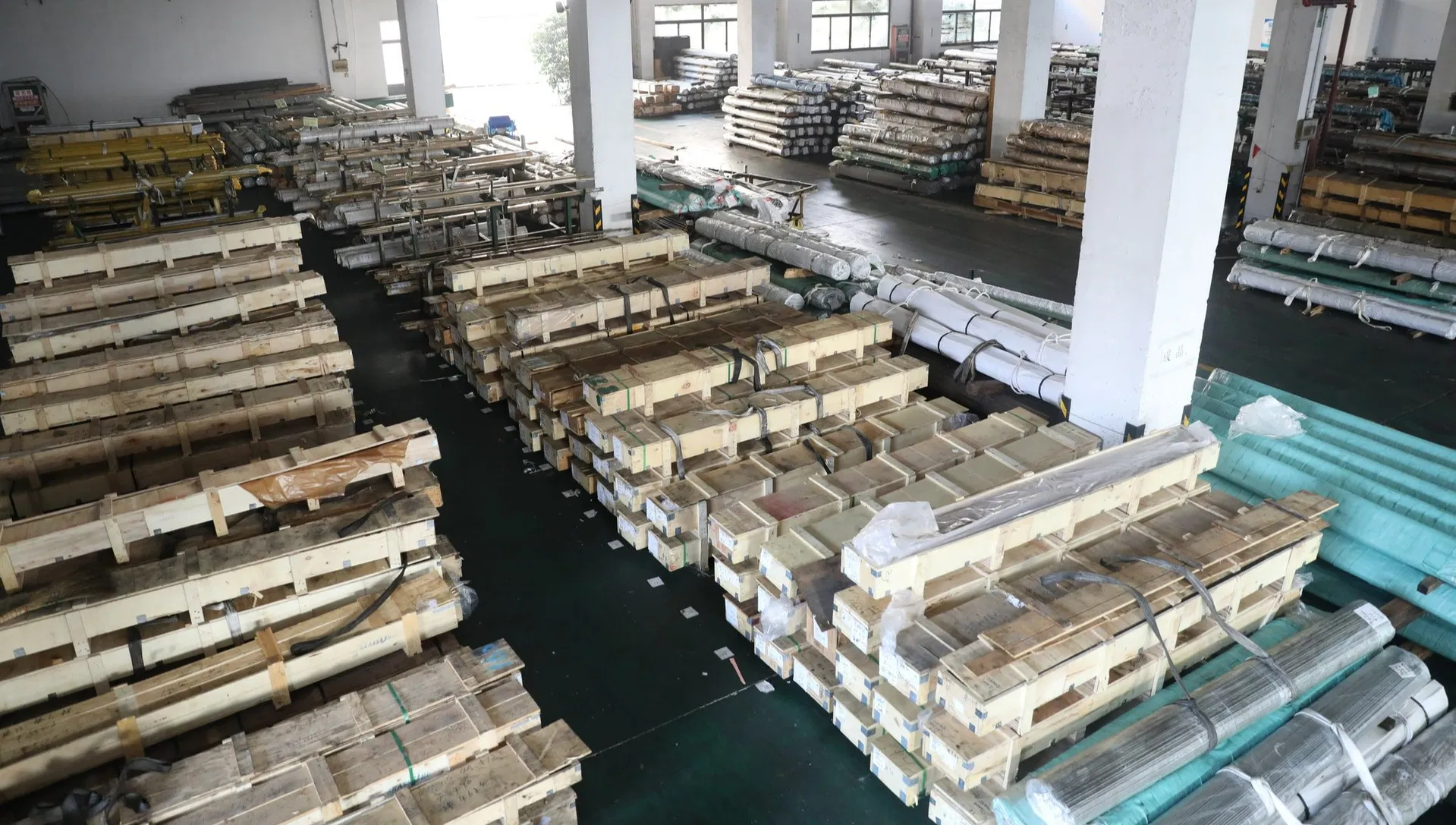

Packaging

Optical Axis

Linear Slider

Optical Axis

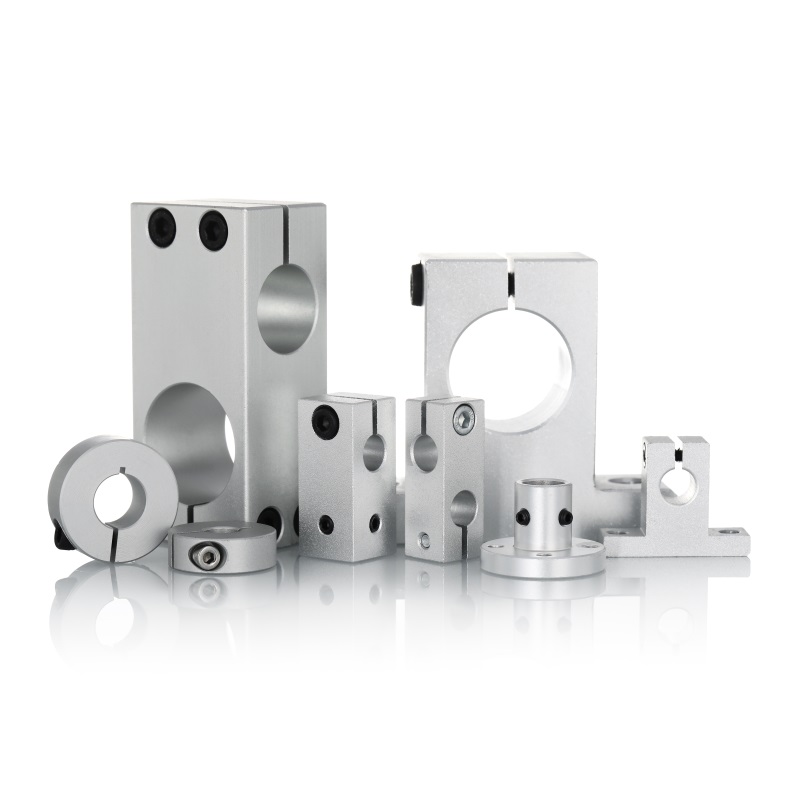

Optical Axis Bracket
