Thread testing equipment

Update Date: 2025/12/18

Regarding the thread inspection machine:

We have designed and manufactured a thread inspection machine through a professional development team that can completely replace manual thread inspection. After years of continuous improvement, refinement, and on-site verification, its product quality, performance, and effectiveness have been perfected. This thread detection machine not only has a complete range of product models, but also greatly improves the efficiency and accuracy of thread detection while realizing mechanization and toolization of thread detection, which can save a lot of costs for enterprises.

Description

"I just want to avoid spinning thread gauges all day"
Quick thread verification using a motorized power unit consists a low-inertia torque-limiting mechanism.
Automated Thread Inspection
1.Thread is too large or too small
2.Chaotic screw teeth

3.Thread depth

4.No thread

5.Wrong thread position

6.The pitch of the screw thread is wrong

7.The threads are covered..........
   Efficient
      Low cost
    Easy to operate
1.Torque range 1-10kg, speed 150-1000 rpm,
2.The number of turns can be set, and it will automatically rotate out when in place.
3.Adjustable torque, electronically set speed,
4.Torque overload automatic stop alarm,
5.Automatic counting,
6.Infrared leak detection alarm

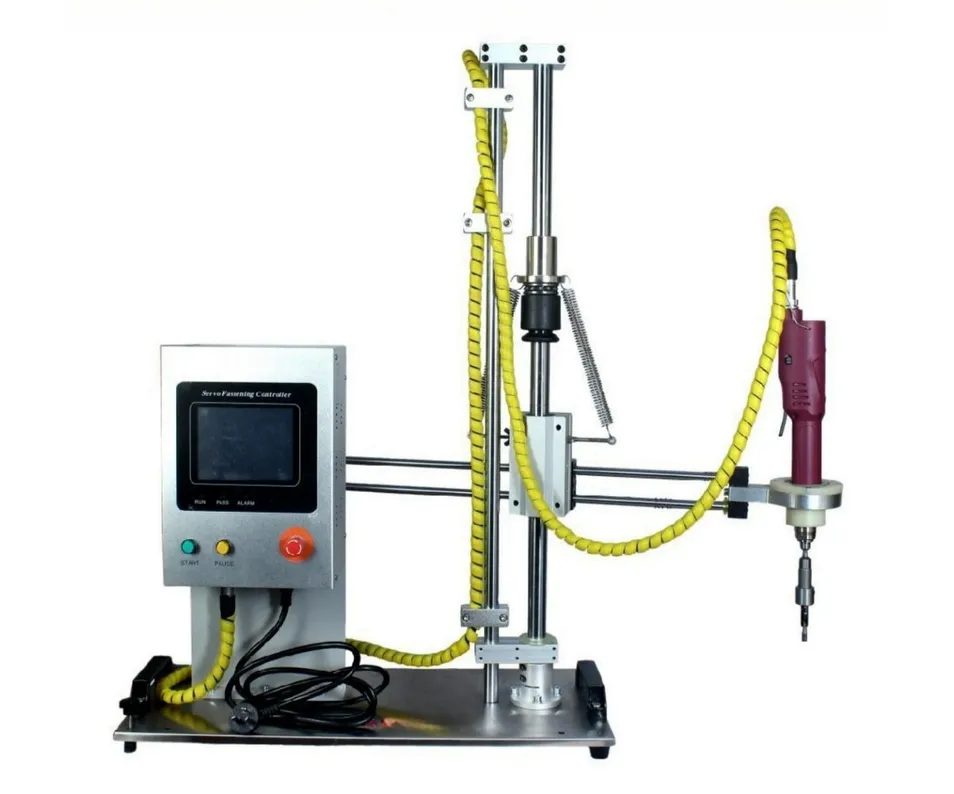

Automated Thread Inspection

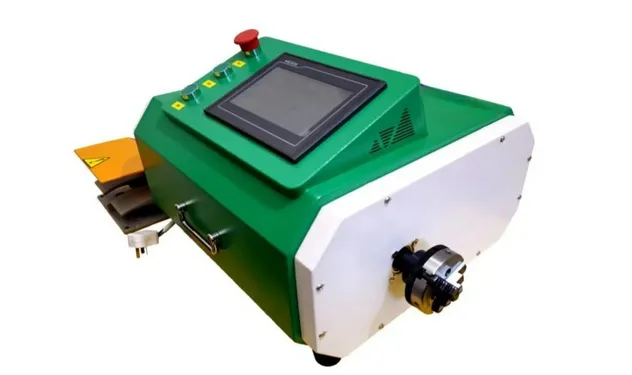

Automated Thread Inspection
*A variety of models to choose from, can also be customized according to requirements*

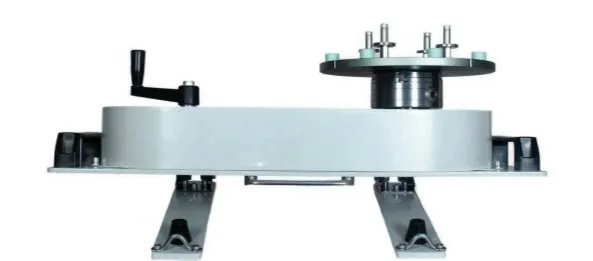

Automated Thread Inspection

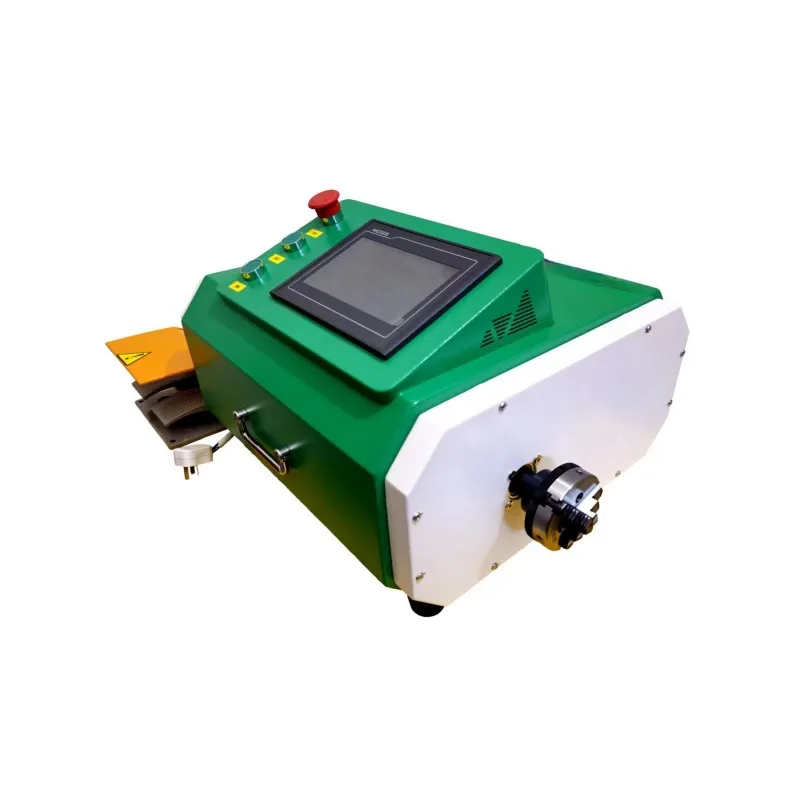

Automated Thread Inspection

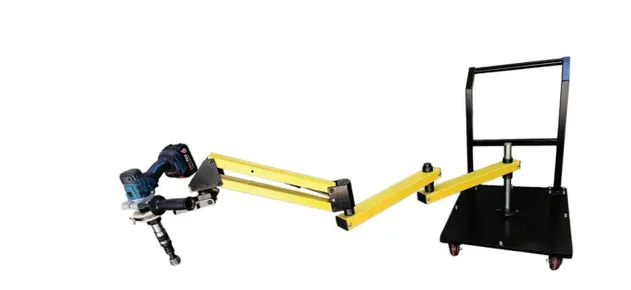

Automated Thread Inspection
